Anderson power board
Anderson Power Board.

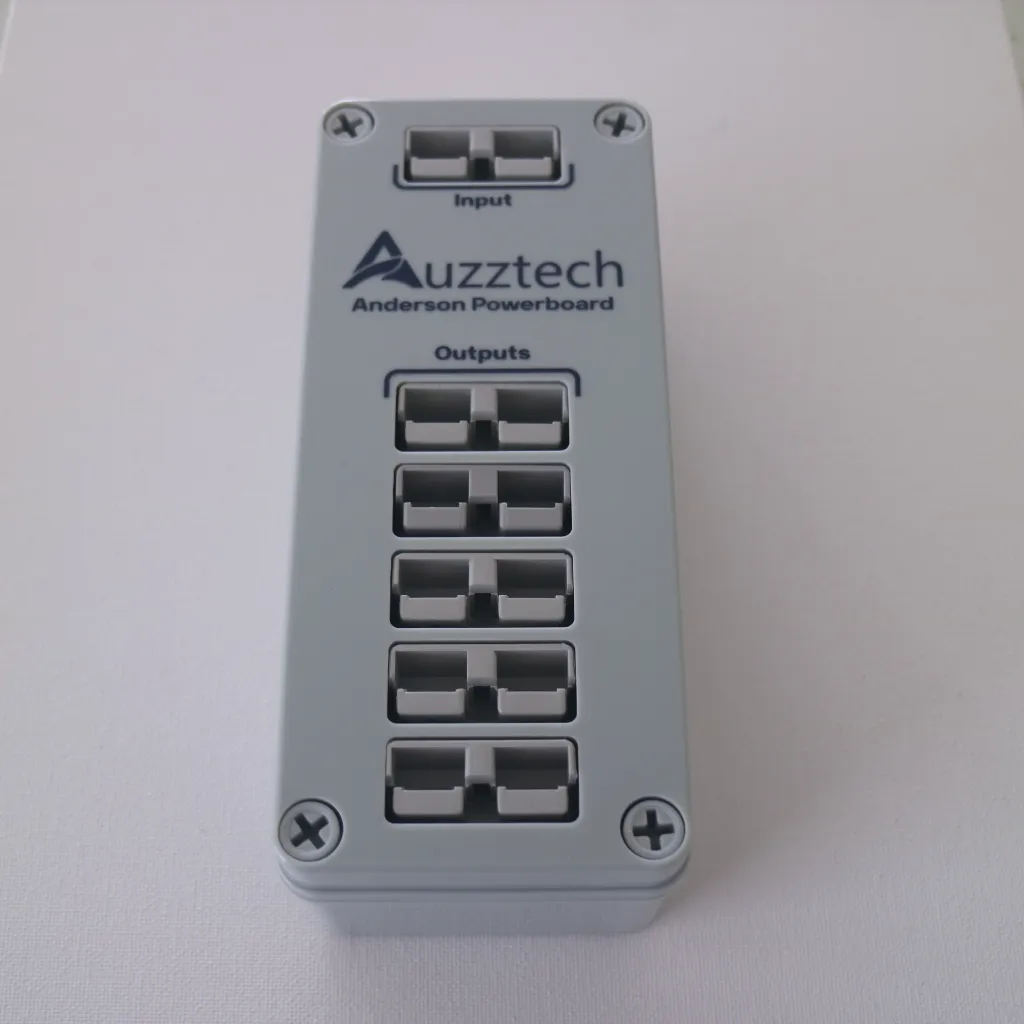

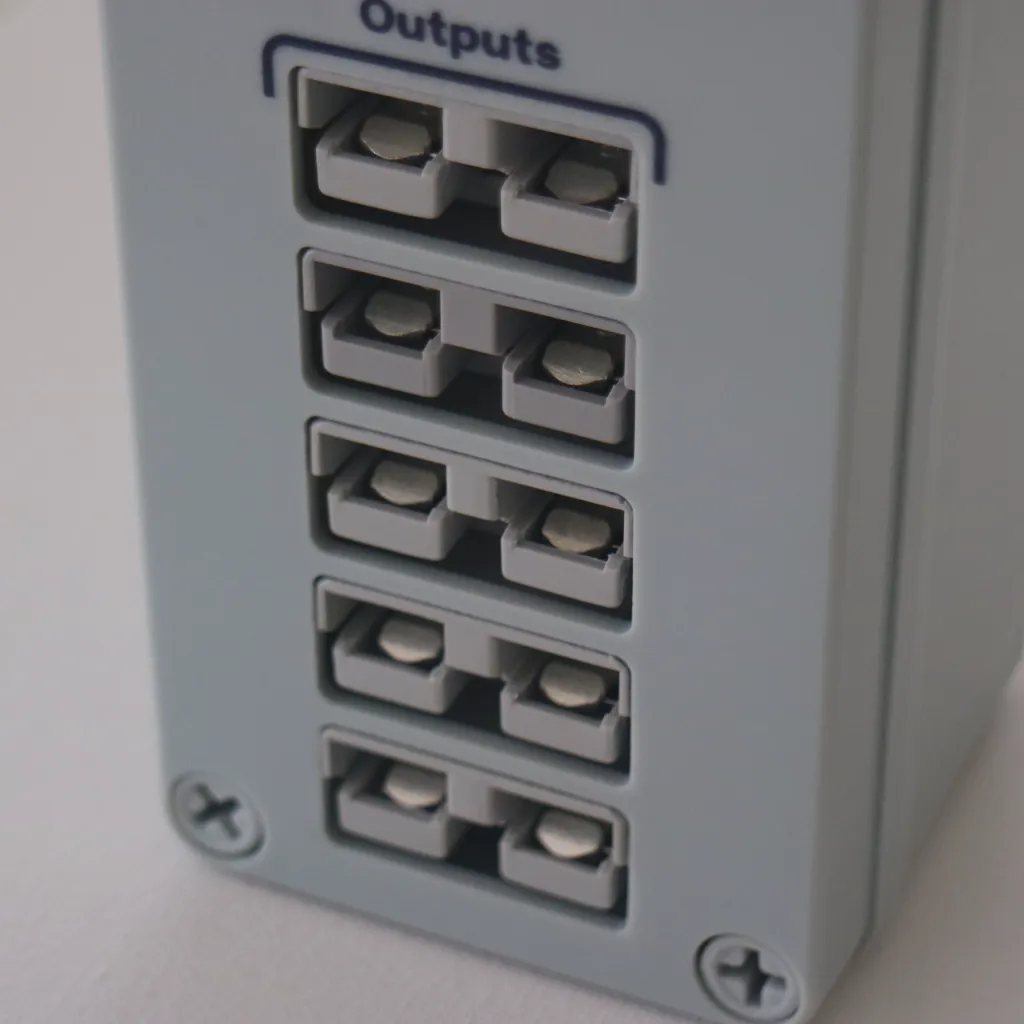

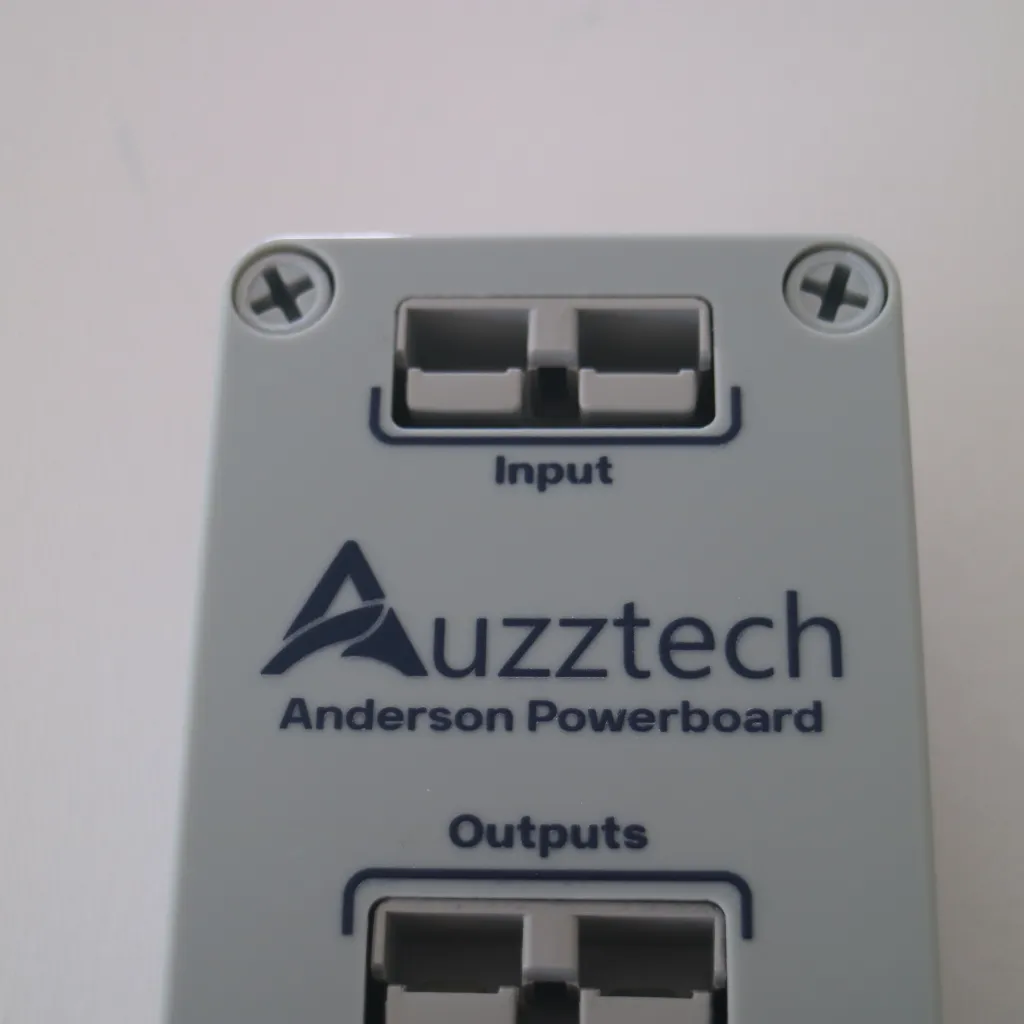

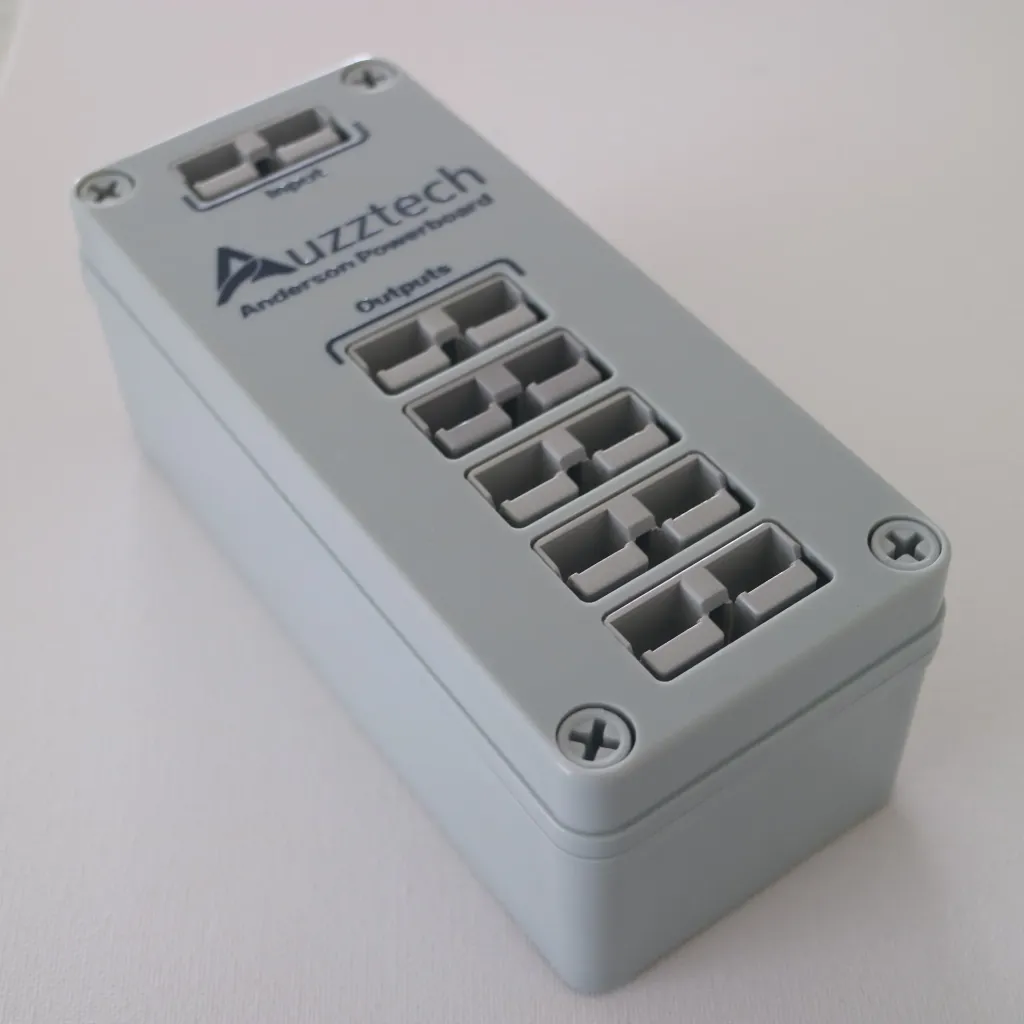

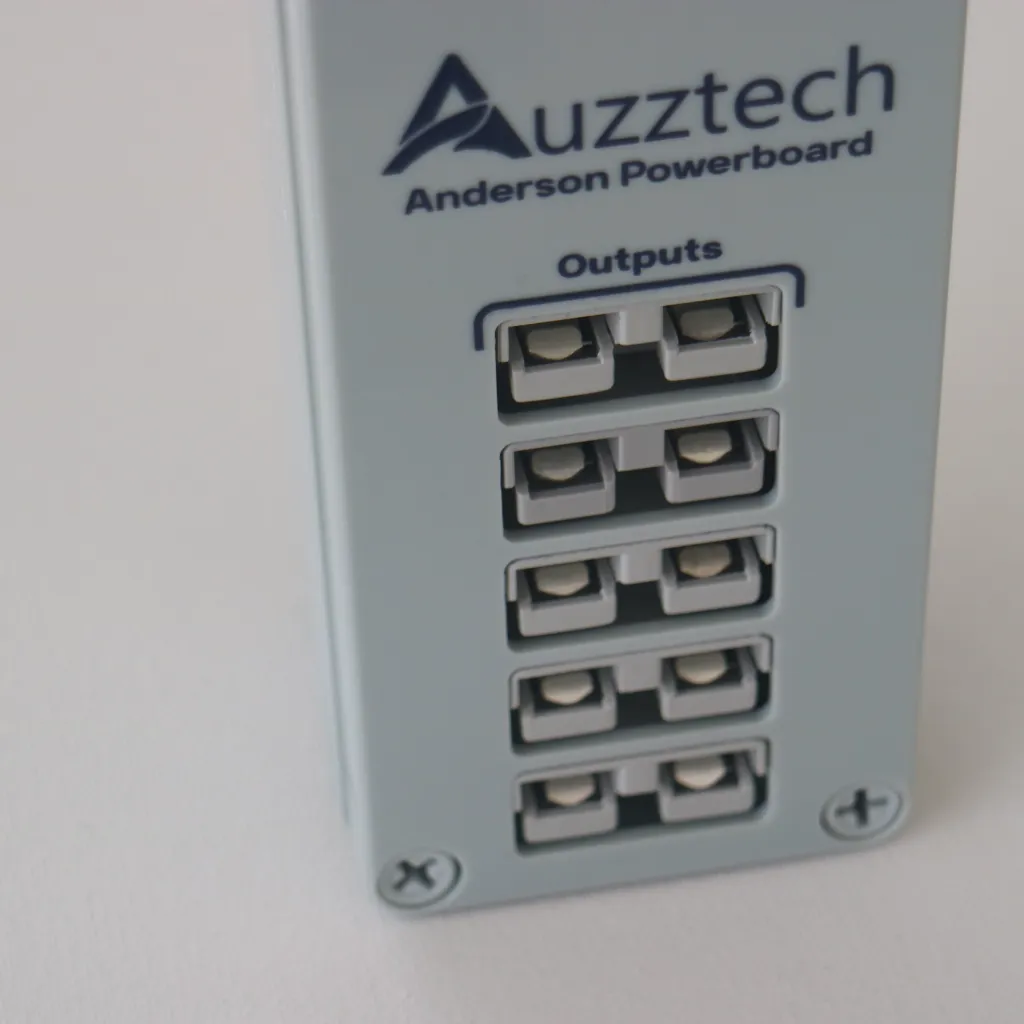

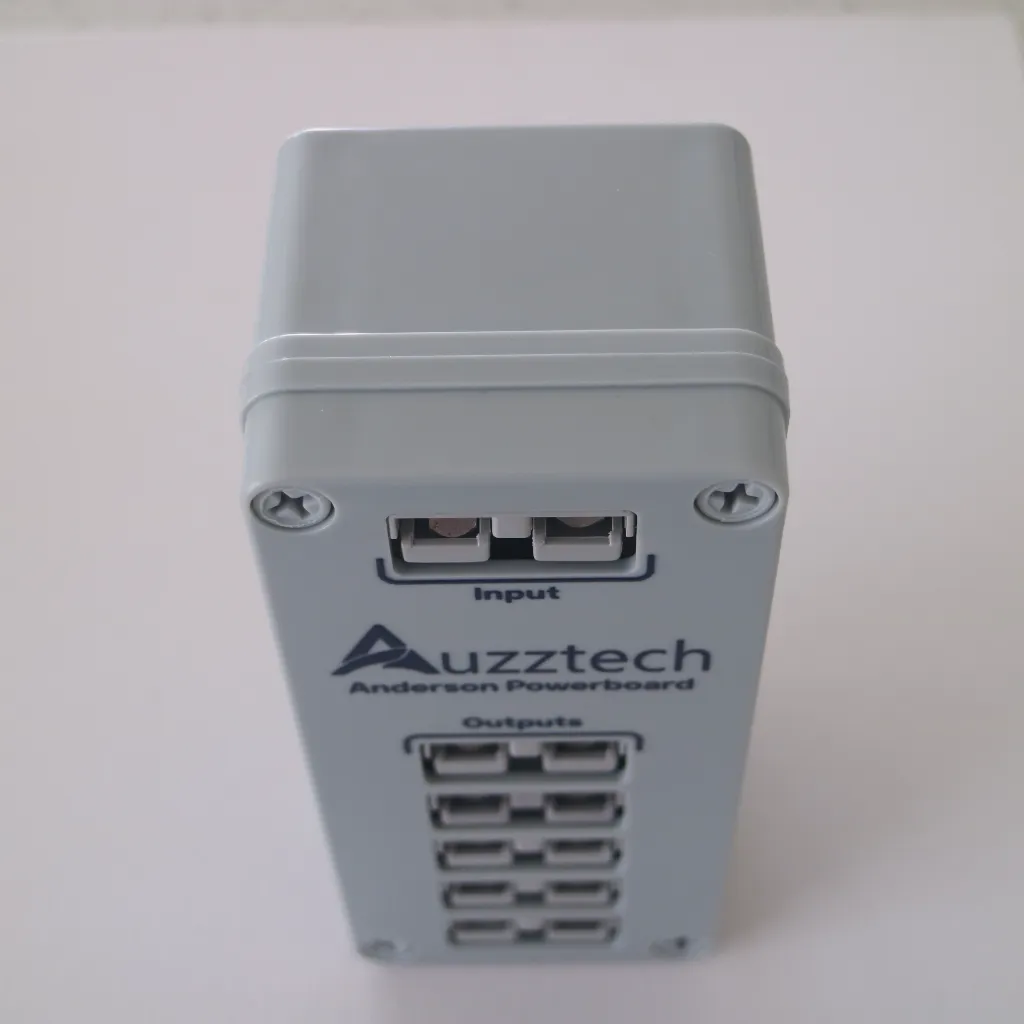

The Auzztech Anderson Power Board is a 5-way, Anderson-style power distribution hub built for 12V DC auxiliary systems in 4WDs, camper trailers and caravans. It takes a single Anderson plug input and safely spreads power across five outputs, giving you one tidy, centralised connection point for all your accessories instead of a tangle of individual leads.
Rated for up to 50A continuous current at 10-15V DC, the board includes a self-resetting thermal circuit breaker for reliable overcurrent protection. The housing can be permanently mounted or simply used as a standalone, loose appliance.
It's a great fit for 12V fridges and freezers, DC-DC battery chargers, air compressors, portable power stations, camp lighting, water pumps and showers, small inverters and satellite internet setups, making it a handy central hub for touring, camping and off-grid 4WD power systems.
Specifications:
Normal operating voltage: 12 VDC (10 – 15VDC)
Maximum continuous current: 50A
Overcurrent protection: Thermal circuit breaker (self-resetting)
Circuit breaker trip current: ~50A
What's included:
1 x Anderson power board.
1 x Cardboard box.
